Gauge 23 Pin Nailer #TN11L1

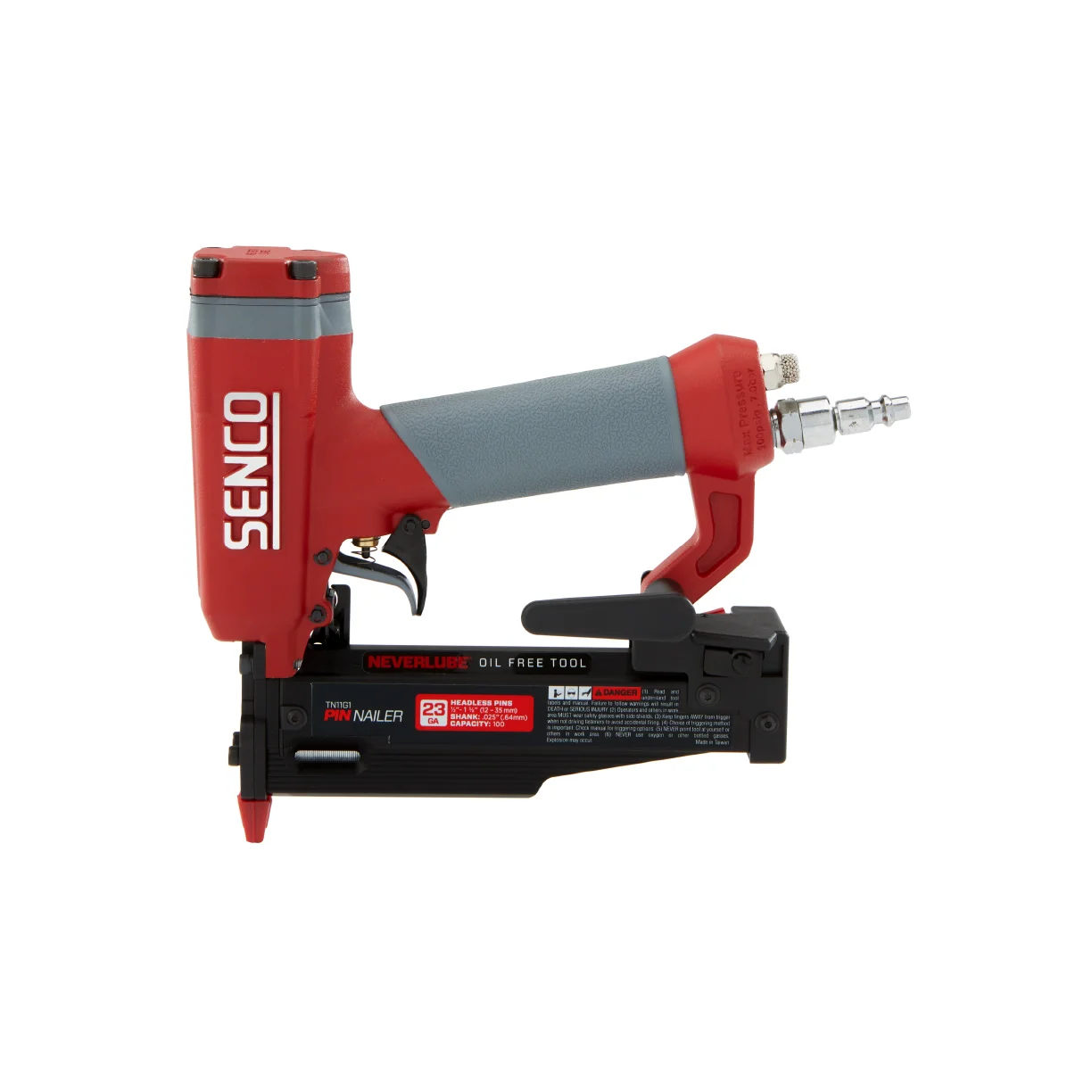

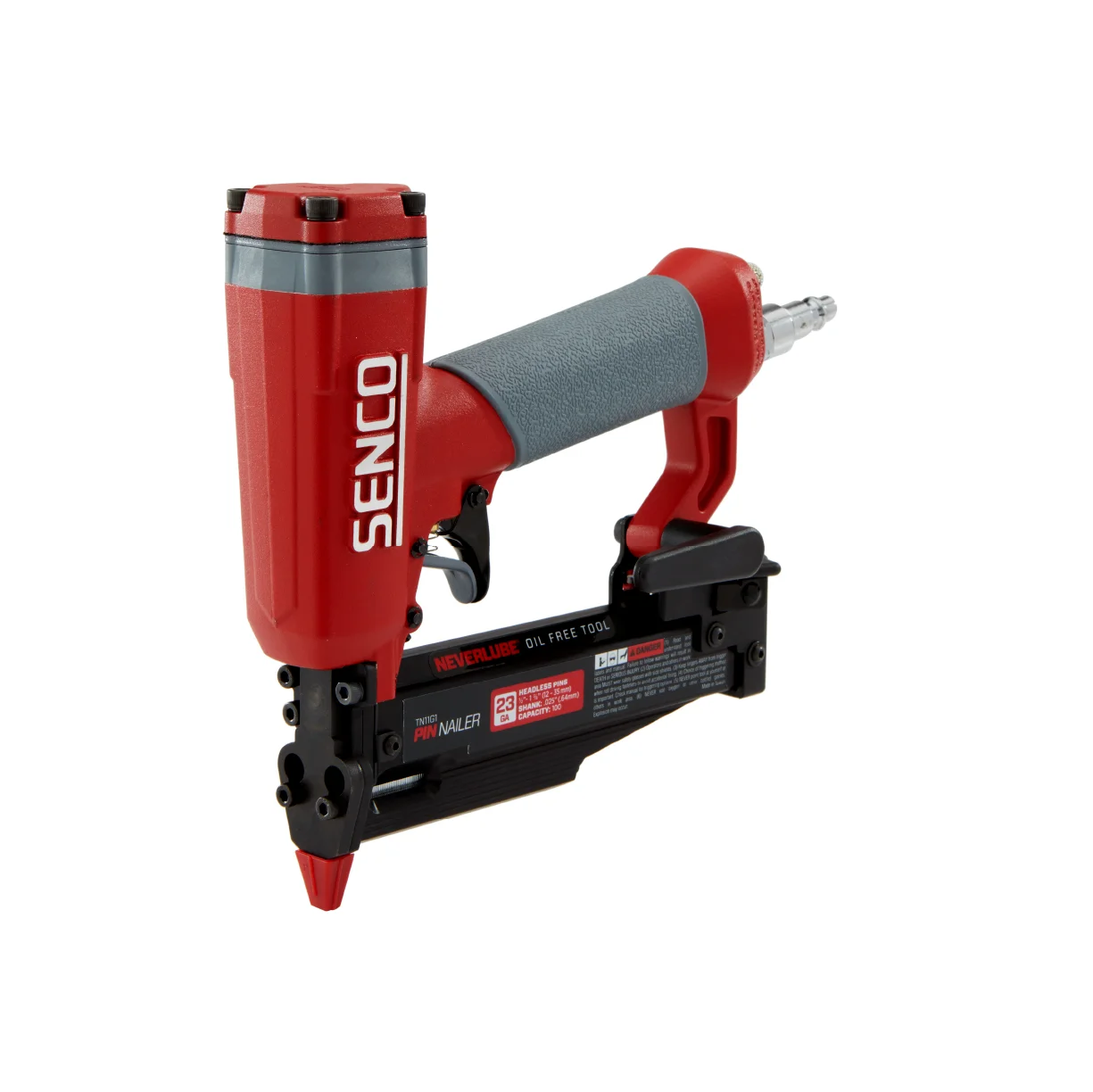

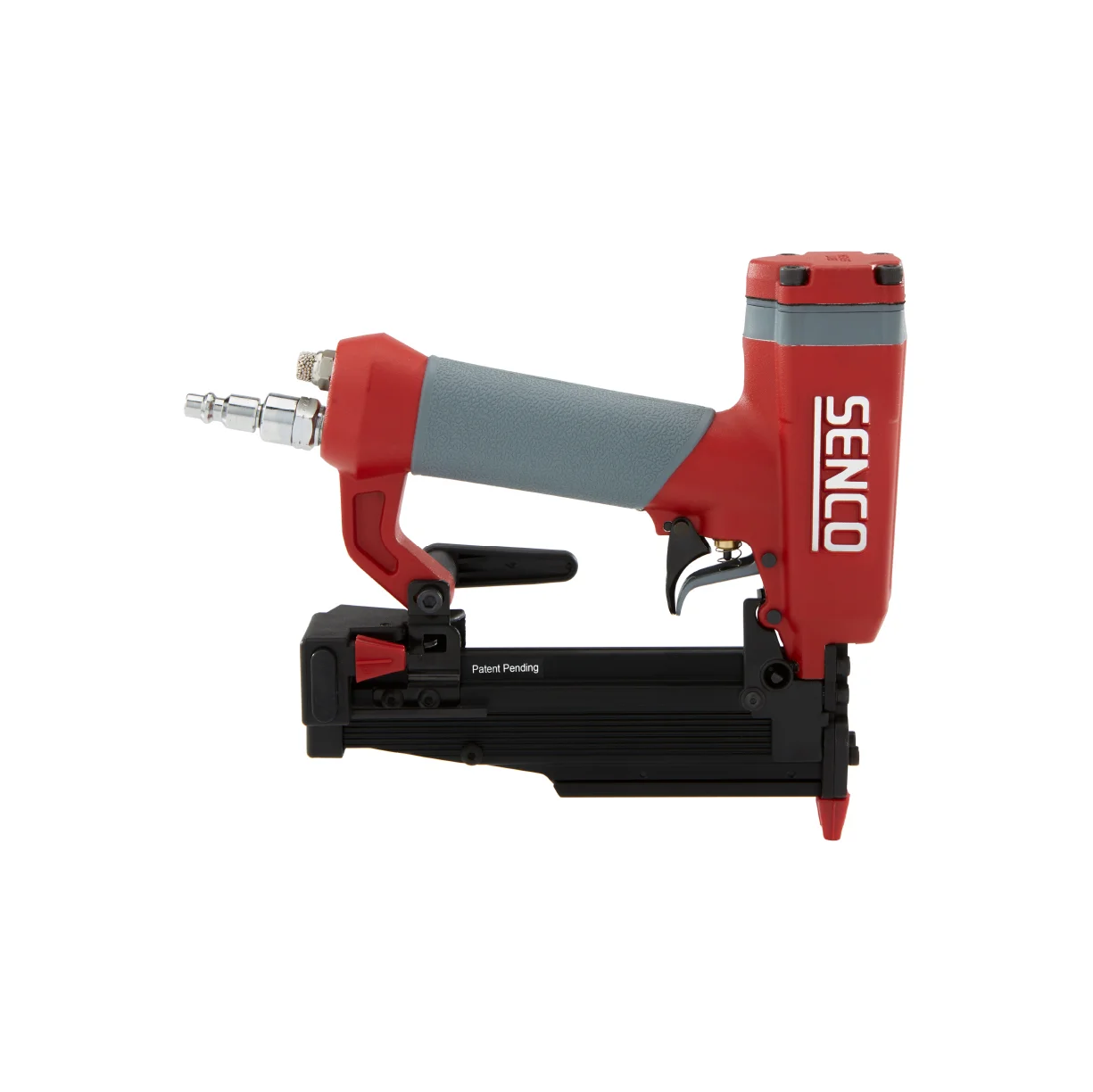

The Paku Pin 23 Ga 1-3/8” is a precision nailer from SENCO

The SENCO 23 Gauge Pin Nailer 1-3/8” is a precision fastening tool designed to drive headless pins with a 23 gauge size and lengths up to 1-3/8 inches. It is ideal for installing trim, wood molding, and detailed finish work where a clean, nearly invisible fastener mark is required.

Featuring a lightweight and ergonomic design, this 23 Gauge Pin Nailer allows users to work comfortably and accurately, even in tight or overhead spaces. With reliable performance and smooth operation, the 23 Gauge Pin Nailer is the perfect choice for professionals in construction, carpentry, cabinetry, and furniture making.

Advantages of the SENCO 23 Gauge Pin Nailer:

• Ergonomic grip with a comfortable angle provides better control and reduces fatigue during extended use.

• Automatic magazine adjusts to the length of the pins, making operation more practical and efficient.

• Slim nosepiece allows easy access to tight or narrow areas, ideal for detailed work.

• Reversible belt hook enables users to conveniently hang the tool on either side.

• NEVERLUBE oil-free design eliminates the need for regular lubrication, keeping the tool clean and maintenance-friendly.

Features Pin Nailer 23 Ga 1-3/8 inch

Key Features of the SENCO 23 Gauge Pin Nailer:

1. NEVERLUBE Oil-Free Operation
   Enables maintenance-free use while reducing the risk of internal wear on the tool.

2. Self-Adjusting Magazine
   Automatically adapts to accommodate varying pin lengths for greater versatility.

3. Ergonomic Angled “Pistol-Grip” Handle
   Provides enhanced control and ensures comfortable operation throughout the day.

4. Ultra-Narrow Nosepiece
   Allows easy access to tight corners and hard-to-reach areas for precision work.

5. Reversible Belt Hook
   Can be mounted on either side of the tool, making it suitable for right- or left-handed users.

6. Last Nail Lock-Out
   Prevents dry firing to protect the tool and work surface.

7. Rear Exhaust with Embedded Muffler
   Includes a 1/4” swivel air plug for convenient and user-friendly operation.

8. Low Load Indicator
   Lets the user know when it’s time to reload, with a visible indicator located at the rear of the tool.

9. Double Trigger Safety
   Acts as a safeguard to prevent accidental pin discharge during use.

Applications of 23 Ga 1-3/8” Pin Nails:

• Fine woodworking

• Decorative molding and trim installation

Specifications Of 23 Ga 1-3/8″ Pin Nails:

• Item #: TN11G1

• Tool Weight: 1.09 kg (2.41 lbs)

• Height: 7.8″ (198 mm)

• Length: 8.57″ (218 mm)

• Width: 66 mm (2.6″)

• Power Type: Pneumatic

• Operating Pressure: 70–100 PSI

• Operating Pressure: 4.8–6.9 Bar

• Air Consumption: 1.1 SCFM (at 60 cycles per minute)

• Air Inlet (NPT): 0.25″

• Maximum Pressure: 100 PSI

• Technology: Pneumatic

• Trigger Type: Sequential Double Trigger

• Magazine Capacity: 100 pins

• Fastener Range: 1/2″ – 1-3/8″

Compatible Fasteners:

• Type: 23 Ga. Straight Strip Micro Pins

• Gauge: 23

• Length Range: 1/2″ – 1-3/8″

• Collation: Straight Strip

The Pin Nailer 23 Ga 1-3/8 inches is a precision tool designed for fine, delicate nailing tasks. With its 23-gauge size, this pin nailer drives thin pins that leave minimal holes, ensuring a clean and smooth finish.
